WebアプリケーションによるROS2データの可視化4 Webアプリケーション側からのROS2情報送信

const Viewer = () => {

    // コマンド文字列を保持する useState を追加
    const [commandStr, setCommandStr] = useState<string>('');

    // ROS側へコマンド送付を行う処理を追加
    const sendToServer = () => {
        if (commandStr !== '') {
            rosOpRef.current.sendTextCommand(commandStr);
        }
    };

    return (
        <>
                {/* 追記部のみ */}

                {/* サーバ側へのコマンド送付 */}
                <Row>
                    <Row>
                        <Col xs lg="2">
                            <Form.Control
                                id="inputCommand"
                                placeholder="Command"
                                onChange={(e) => {setCommandStr(e.target.value);}}
                            />
                        </Col>
                        <Col xs lg="2">
                            <Button
                                variant={rosConnected ? "primary" : "secondary"}
                                disabled={!rosConnected}
                                onClick={rosConnected ? sendToServer : null}
                            >
                                サーバ側へ送信
                            </Button>
                        </Col>
                    </Row>
                    <Row>
                        <Col>
                            <span>

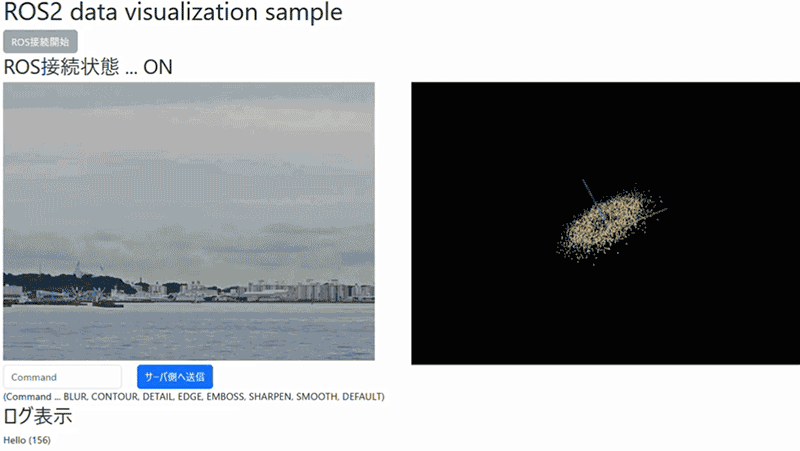

                            (Command ... BLUR, CONTOUR, DETAIL, EDGE, EMBOSS, SHARPEN, SMOOTH, DEFAULT)
                            </span>
                        </Col>
                    </Row>
                </Row>
        </>
    );
}

// コマンドトピック名
const TOPIC_NAME_COMMAND = '/command'

// String 型の定義 (画像受信時に定義済み)
export interface String {
    data: string;
}

const RosOperator = forwardRef((props, ref) => {

    // 上位モジュールから呼び出される処理
    useImperativeHandle(ref, () => ({

        // ROSとの接続
        connect: () => {
            connectToROS();
        },

        // テキストのコマンドを送信 (追加)
        sendTextCommand: (command) => {
            sendCommand(command);
        },
    }));

    // Command string topic Sender
    const [commandStrSender, setCommandStrSender] = useState<ROSLIB.Topic | null>(null);

    // ROS オブジェクト更新時に Listener & Sender を更新
    useEffect(() => {
        // 今までの Listener 更新時の処理に commandStrSender の更新処理を追加

        setCommandStrSender(
            new ROSLIB.Topic({
                ros: ros,
                name: TOPIC_NAME_COMMAND,
                messageType: 'std_msgs/String',
            })
        );
    }

    // コマンド (文字列Topic) 送信
    const sendCommand = (command) => {
        const msg = new ROSLIB.Message({data: command})
        commandStrSender?.publish(msg);
    };
});

"""
読み込んだ画像を指定サイズで順次publishするノード
( コマンド追加版 )
"""
import glob
import numpy as np
# from PIL import Image
from PIL import Image, ImageFilter

import rclpy
from rclpy.node import Node
from rclpy.qos import qos_profile_sensor_data
from std_msgs.msg import Header
from std_msgs.msg import String  # for command
from sensor_msgs.msg import Image as SensorImage

### Node name
NODE_NAME = 'image_sender'

### Topic name
TOPIC_NAME = '/image'

### Subscription command topic name
SUB_TOPIC_NAME = '/command'

### Timer period
TIMER_PERIOD = 0.25  # 0.25秒おきに呼び出し

### Image size
# NOTE: 指定サイズにリサイズ
IMAGE_WIDTH  = 640
IMAGE_HEIGHT = 480
# IMAGE_WIDTH  = 256
# IMAGE_HEIGHT = 256

### 指定ディレクトリを読み込み → 中の画像を順次表示
IMAGE_DIR = './images/'

### Image sender node
class ImageSenderNode(Node) :

    def __init__(self) :
        super().__init__(NODE_NAME)

        # Initialize publisher
        self.publisher = self.create_publisher(SensorImage, TOPIC_NAME, 10)

        # Initialize command subscription
        self.subscription = self.create_subscription(
            String,
            SUB_TOPIC_NAME,
            self.command_callback,
            qos_profile_sensor_data,
        )

        # Command str
        self.command_str = ''  # 受信したら以降の画像に適用

        # Load images path
        self.images = glob.glob(f'{IMAGE_DIR}/*.jpg')
        self.images.extend(glob.glob(f'{IMAGE_DIR}/*.png'))
        self.images = sorted(self.images)
        self.idx = 0
        self.images_max = len(self.images)

        # Timer
        self.timer = self.create_timer(TIMER_PERIOD, self.on_timer)

    def command_callback(self, msg) :
        """
        受信したコマンド (string msg) を保持し、以降に送信する画像に適用する。
        """
        self.command_str = msg.data

    def on_timer(self) :

        # Open image
        img = Image.open(self.images[self.idx])
        img = img.resize((IMAGE_WIDTH, IMAGE_HEIGHT))

        # コマンド指定されていたら適用
        if self.command_str.upper() == 'BLUR' :
            img = img.filter(ImageFilter.BLUR)
        elif self.command_str.upper() == 'CONTOUR' :
            img = img.filter(ImageFilter.CONTOUR)
        elif self.command_str.upper() == 'DETAIL' :
            img = img.filter(ImageFilter.DETAIL)
        elif self.command_str.upper() == 'EDGE' :
            img = img.filter(ImageFilter.EDGE_ENHANCE)
        elif self.command_str.upper() == 'EMBOSS' :
            img = img.filter(ImageFilter.EMBOSS)
        elif self.command_str.upper() == 'SHARPEN' :
            img = img.filter(ImageFilter.SHARPEN)
        elif self.command_str.upper() == 'SMOOTH' :
            img = img.filter(ImageFilter.SMOOTH)

        # Publish
        header = Header(frame_id = 'map')
        header.stamp = self.get_clock().now().to_msg()
        msg = SensorImage()
        msg.header = header
        msg.height = img.height
        msg.width = img.width
        msg.encoding = 'rgb8'
        msg.is_bigendian = False
        msg.step = 3 * img.width
        msg.data = np.array(img).tobytes()
        self.publisher.publish(msg)

        # Increment
        self.idx += 1
        if self.idx >= self.images_max : self.idx = 0

def main(args = None):

    # Initialize rclpy
    print("Start image sender node.")
    rclpy.init(args = args)

    # Create node
    node = ImageSenderNode()

    # Spin
    try :
        rclpy.spin(node)
    except KeyboardInterrupt :  # Ctrl + C
        pass

    print("Shutdown image sender node.")
    rclpy.shutdown()

if __name__ == '__main__':
    main()
